High-Speed Servo-Based Rotary Filling and Capping Automation System

Modern packaging industries require high precision, consistent quality, and reliable automation to meet increasing production demands. To support these needs, Goose Solutions developed an advanced servo-based rotary filling and capping automation system for high-speed liquid packaging operations.

This case study highlights how the system was designed to improve filling accuracy, operational efficiency, and real-time production visibility while maintaining consistent packaging quality.

Project Overview

The solution features a next-generation rotary packaging system that integrates both filling and capping operations into a single automated process.

The system combines a 36-head net-weight filling machine with an 18-head servo torque capping unit, allowing bottles to be filled and sealed accurately at high production speeds.

Using advanced automation technologies such as servo motion control, PLC systems, and SCADA monitoring, the system ensures seamless operation, precise control, and improved production monitoring.

The Challenge

High-speed liquid packaging lines often face challenges such as:

• Maintaining accurate filling weights at high production speeds

• Ensuring consistent cap torque and sealing quality

• Reducing product wastage and operational downtime

• Achieving real-time monitoring of production performance

Traditional packaging systems may struggle to deliver the level of precision and visibility required for modern manufacturing environments.

To address these challenges, a more intelligent and automated solution was required.

The Solution

Goose Solutions developed a servo-driven rotary filling and capping system designed to deliver both precision and efficiency in liquid packaging operations.

The system integrates multiple automation technologies to ensure accurate filling, reliable sealing, and real-time process control.

Key features of the system include:

High-Precision Filling System

• A 36-head net-weight filling machine ensures accurate product filling

• Load-cell-based measurement technology enables real-time weight detection

• Per-head weight correction improves accuracy and consistency across the production line

Advanced Servo-Based Capping

• An 18-head servo torque capper provides controlled and consistent cap application

• Servo-driven torque control ensures secure sealing without over-tightening or product damage

Intelligent Automation Control

• The system is managed through PLC-based automation control

• HMI interfaces allow operators to monitor and control machine performance

• SCADA-based monitoring provides real-time production data and system diagnostics

How the System Works

The automation process is designed to ensure smooth and efficient bottle handling throughout the packaging cycle.

1. Bottle Infeed: Bottles are introduced into the system through a servo-controlled infeed mechanism that accurately positions them for the filling process.

2. Weight-Based Filling: Each filling head dispenses liquid based on precise weight measurements using load-cell technology, ensuring consistent fill levels.

3. Bottle Transfer: After filling, bottles move seamlessly through the rotary system towards the capping station

4. Servo-Controlled Capping: The servo-driven torque capper applies caps with controlled torque to ensure reliable sealing and product integrity

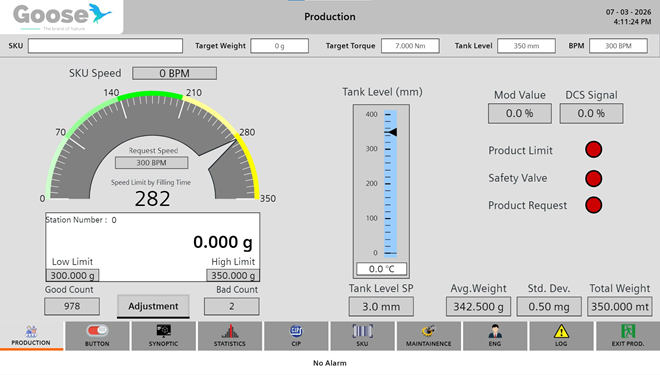

5. Real-Time Monitoring: The entire process is monitored through PLC, HMI, and SCADA systems, allowing operators to track production performance and system status in real time

Key Advantages of the System

The automation system offers several operational benefits that enhance packaging performance and production reliability.



Precision and Accuracy

• Weight-based filling ensures consistent product quantity in every bottle

• Per-head correction minimises filling deviations

Higher Production Efficiency

• Servo automation allows smooth, high-speed operations

• Integrated processes reduce operational delays and downtime

Reduced Product Loss

• Accurate filling minimises product wastage and overfilling

Real-Time Production Insights

• SCADA monitoring provides live production data, system diagnostics, and performance analytics

Reliable Packaging Quality

• Torque-controlled capping ensures secure sealing and consistent packaging quality.



What Makes This System Stand Out

The combination of servo motion control, intelligent weight-based filling, and real-time monitoring makes this system a powerful solution for modern packaging facilities.

Unlike traditional packaging equipment, the system provides:

• Advanced servo-driven automation

• High filling accuracy with load-cell technology

• Individually controlled capping torque

• Complete production visibility through SCADA systems

This integration of precision engineering and intelligent automation ensures consistent product quality, improved efficiency, and enhanced production control.

Conclusion

As packaging industries continue to demand greater efficiency, accuracy, and automation, advanced solutions such as servo-based rotary filling and capping systems play a critical role in modern manufacturing.

By integrating intelligent control systems, high-precision filling technology, and advanced monitoring capabilities, Goose Solutions delivers a packaging automation system designed for performance, reliability, and future-ready production environments.
